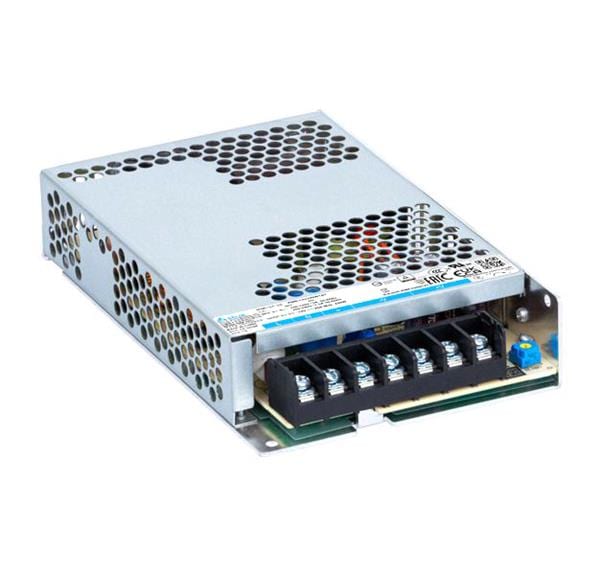

Delta Electronics, Inc. PMR-48V240W1AT Panel Mount Power Supplies 240W 48V 5A low profile W/PFC

Width: 97 mm

Height: 30 mm

Length: 159 mm

Industry: Industrial

Dimensions: 159 mm x 97 mm x 30 mm

Unit Weight: 450 g

Output Power: 240 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Rack

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
