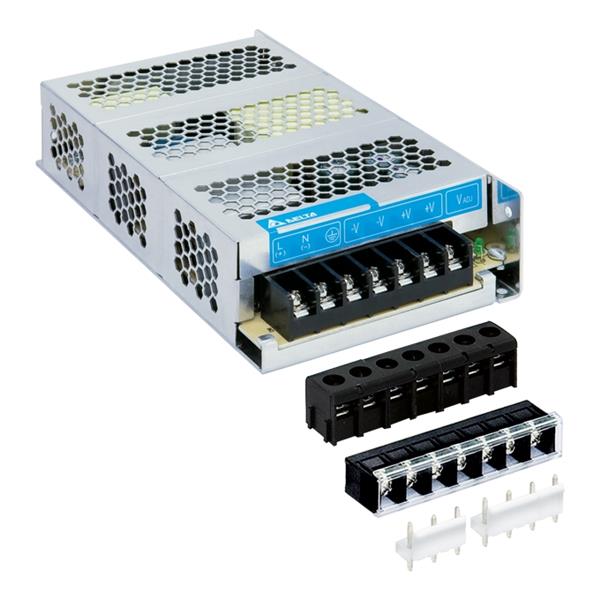

Delta Electronics, Inc. PMH-24V150WCBA Switching Power Supplies 150W / 24V PELV - Terminal Block

Width: 96.774 mm (3.81 in)

Height: 37.846 mm (1.49 in)

Length: 177.8 mm (7 in)

Unit Weight: 560 g

Output Power: 150 W

REACH - SVHC: Details

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Isolation Voltage: 4.5 kVAC

Number of Outputs: 1 Output

Power - Convection: 150 W

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 6.25 A

Output Voltage-Channel 1: 24 VDC
