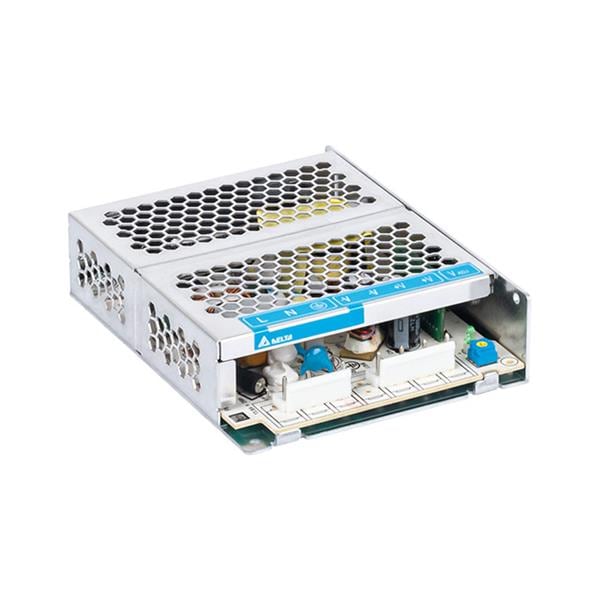

Delta Electronics, Inc. PMH-12V100WCMT Panel Mount Power Supply 100W / 12V - NEC Class 2 - Harness

Width: 97 mm (3.819 in)

Height: 30 mm (1.181 in)

Length: 129 mm (5.079 in)

Industry: Household

Efficiency: 83 %

Unit Weight: 310 g

Output Power: 100 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 4.5 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
