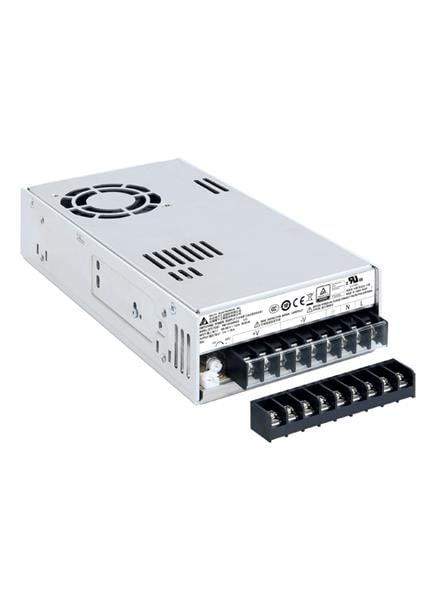

Delta Electronics, Inc. PMF-5V320WCAR Switching Power Supplies 320W / 5V - Terminal Block, with Remote On/Off

Width: 115.062 mm (4.53 in)

Height: 50.038 mm (1.97 in)

Length: 214.884 mm (8.46 in)

Industry: Industrial

Approvals: EN60601-1, ES60601-1

Compliance: EN60601-1, ES60601-1

Efficiency: 78.5 %

Output Power: 275 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 275 W

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 55 A

Output Voltage-Channel 1: 5 VDC
