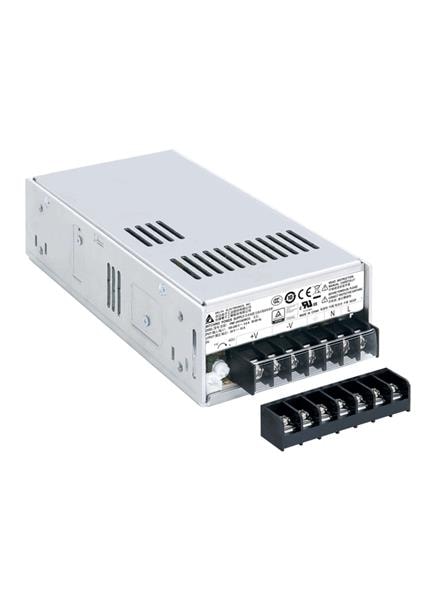

Delta Electronics, Inc. PMF-24V240WCAR Switching Power Supplies 240W / 24V - Terminal Block, with Remote On/Off

Width: 92.964 mm (3.66 in)

Height: 50.038 mm (1.97 in)

Length: 189.992 mm (7.48 in)

Industry: Industrial

Approvals: EN60601-1, ES60601-1

Compliance: EN60601-1, ES60601-1

Efficiency: 87 %

Output Power: 240 W

REACH - SVHC: Details

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 240 W

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 10 A

Output Voltage-Channel 1: 24 VDC
