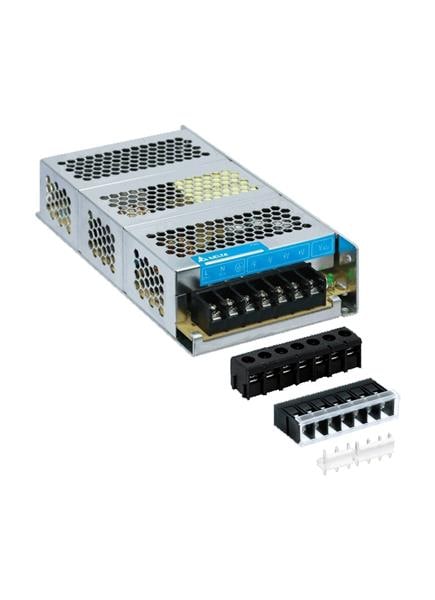

Delta Electronics, Inc. PMC-48V150W1BA Switching Supplies 150W / 48V with PFC - Terminal Block

Width: 97.028 mm (3.82 in)

Height: 38.1 mm (1.5 in)

Length: 178.054 mm (7.01 in)

Industry: Industrial

Approvals: EN60601-1, ES60601-1

Compliance: EN60601-1, ES60601-1

Efficiency: 91 %

Unit Weight: 260 g

Output Power: 150 W

REACH - SVHC: Details

Input Voltage: 85 VAC to 264 VAC, 125 VDC to 375 VDC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 150 W

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 3.125 A

Output Voltage-Channel 1: 48 VDC
