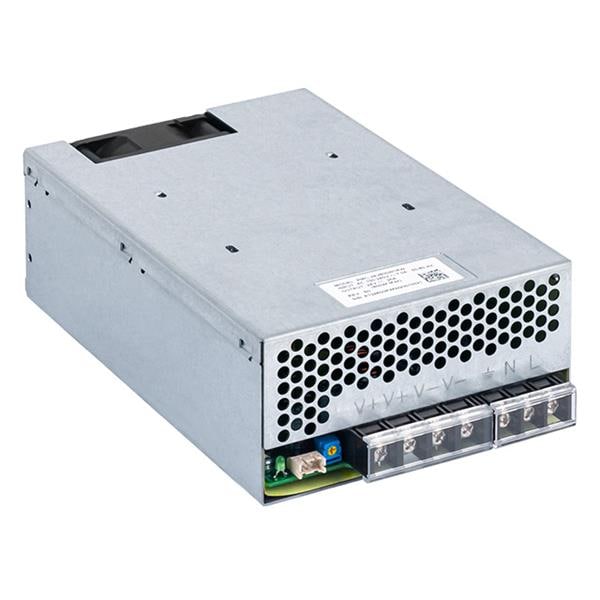

Delta Electronics, Inc. PMC-24V600W1RW Switching Power Supplies 600W / 24V with PFC, Remote On/Off, Front Facing, Coating

Width: 120 mm (4.724 in)

Height: 61 mm (2.402 in)

Length: 190 mm (7.48 in)

Industry: Industrial

Approvals: IEC 60950-1, IEC 62368-1, EN 62368-1, UL 62368-1

Efficiency: 92 %

Unit Weight: 1.4 kg

Output Power: 600 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 25 A

Output Voltage-Channel 1: 25 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
