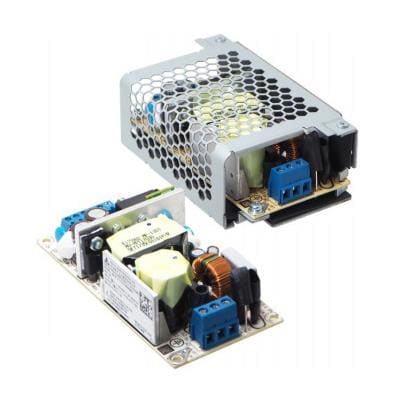

Delta Electronics, Inc. PJU-13V60WCBA Switching Supplies 13V 60W Enclosed, Signal, Terminal Block connector

Width: 244 mm (9.606 in)

Height: 37 mm (1.457 in)

Length: 10.34 mm (0.407 in)

Industry: Industrial

Efficiency: 89 %

Unit Weight: 250 g

Output Power: 60 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Input Voltage, Nominal: 100 VAC to 240 VAC

Output Current-Channel 1: 3.5 A

Output Voltage-Channel 1: 13.8 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
