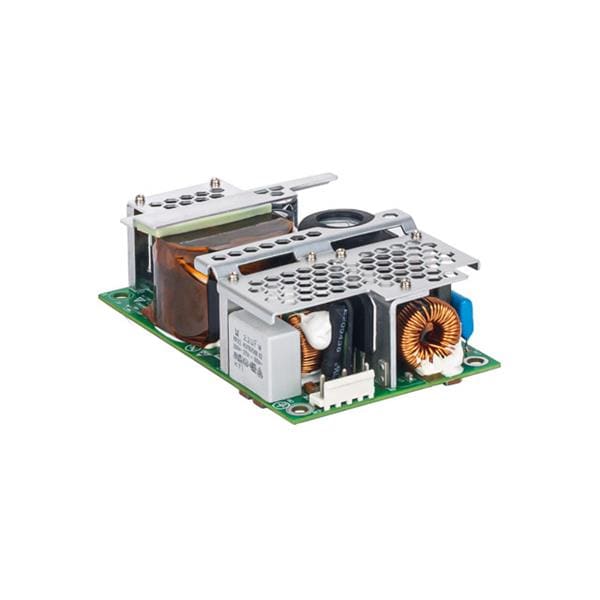

Delta Electronics, Inc. PJL-48V400WBAA Open Frame Power Supply 400W / 48V - Open Frame PFC

Width: 76.6 mm (3.016 in)

Height: 39.3 mm (1.547 in)

Length: 127 mm (5 in)

Industry: Industrial

Approvals: UL 8750, IEC 61347-2-13

Efficiency: 90 %

Unit Weight: 440 g

Output Power: 400 W

Input Voltage: 85 VAC to 305 VAC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 8.33 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
