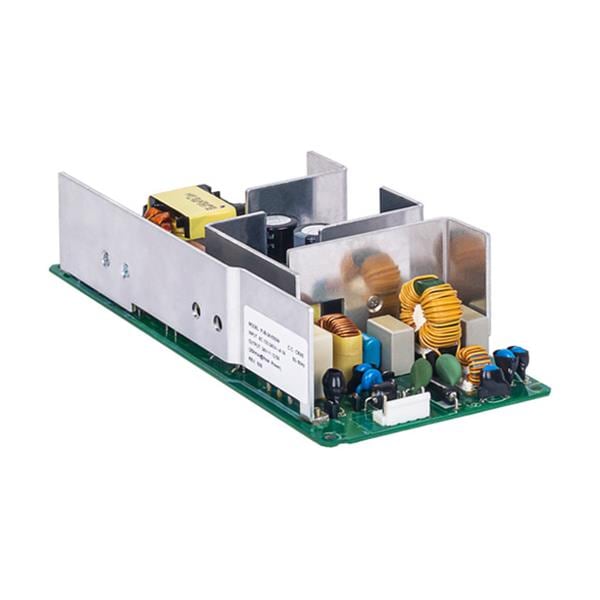

Delta Electronics, Inc. PJB-24V300WBNA Open Frame Power Supply 300W / 24V - Open Frame

Width: 95 mm

Height: 53.6 mm

Length: 222 mm

Industry: Industrial

Approvals: IEC 60950-1, IEC 62368-1

Efficiency: 93.5 %

Unit Weight: 640 g

Output Power: 300 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 12.5 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
