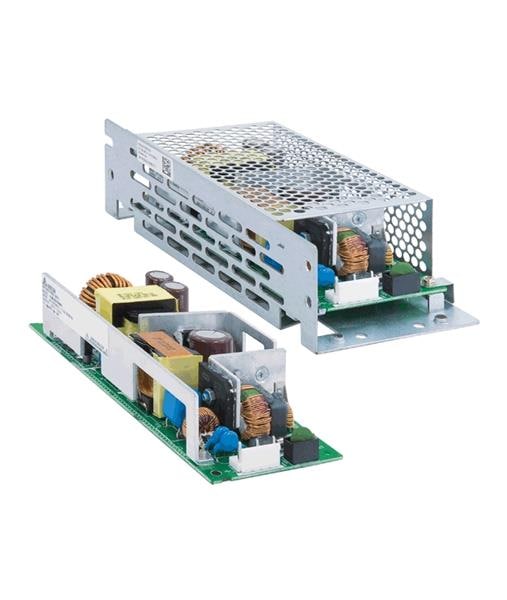

Delta Electronics, Inc. PJB-24V100WLNA Switching Power Supplies 100W / 24V - L Frame

Width: 2.83 in

Height: 1.77 in

Length: 7.28 in

Industry: Industrial

Approvals: EN60601-1, ES60601-1

Compliance: EN60601-1, ES60601-1

Efficiency: 89 %

Output Power: 100 W

REACH - SVHC: Details

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 103.2 W

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 4.3 A

Output Voltage-Channel 1: 24 VDC
