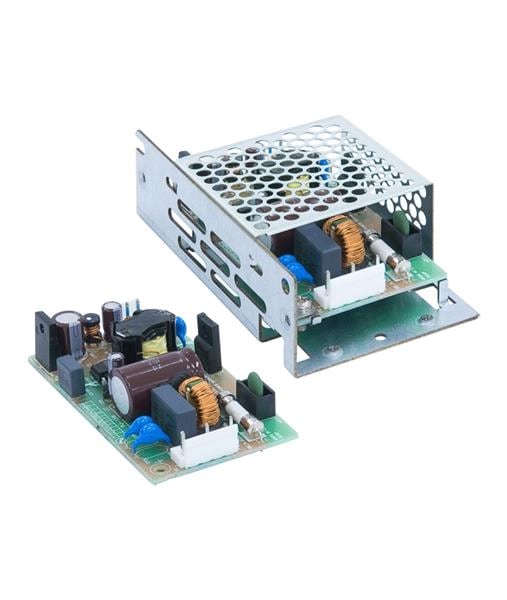

Delta Electronics, Inc. PJ-5V15WBNA Switching Supplies 15W / 5V - Open Frame

Width: 50.038 mm (1.97 in)

Height: 22.098 mm (0.87 in)

Length: 87.376 mm (3.44 in)

Industry: Medical, Industrial

Approvals: EN60601-1, ES60601-1

Compliance: EN60601-1, ES60601-1

Efficiency: 79.5 %

Unit Weight: 300 g

Output Power: 15 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 15 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 3 A

Output Voltage-Channel 1: 5 VDC
