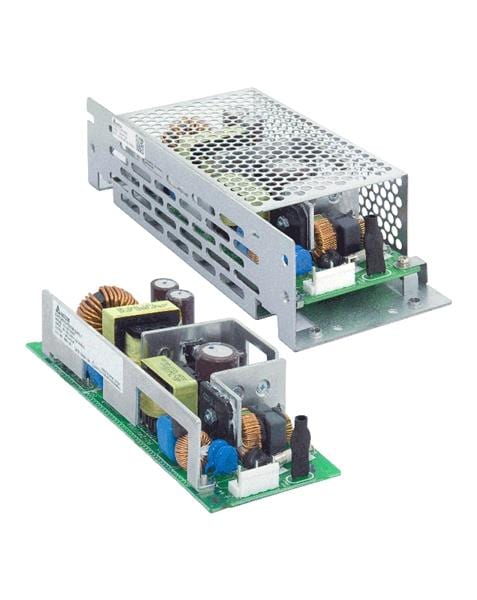

Delta Electronics, Inc. PJ-12V100WLRA Switching Power Supplies 100W / 12V - L Frame with Remote On/Off

Width: 71.882 mm (2.83 in)

Height: 44.958 mm (1.77 in)

Length: 184.912 mm (7.28 in)

Industry: Medical, Industrial

Approvals: EN60601-1, ES60601-1

Compliance: EN60601-1, ES60601-1

Efficiency: 87.5 %

Output Power: 102 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 102 W

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 8.5 A

Output Voltage-Channel 1: 12 VDC
