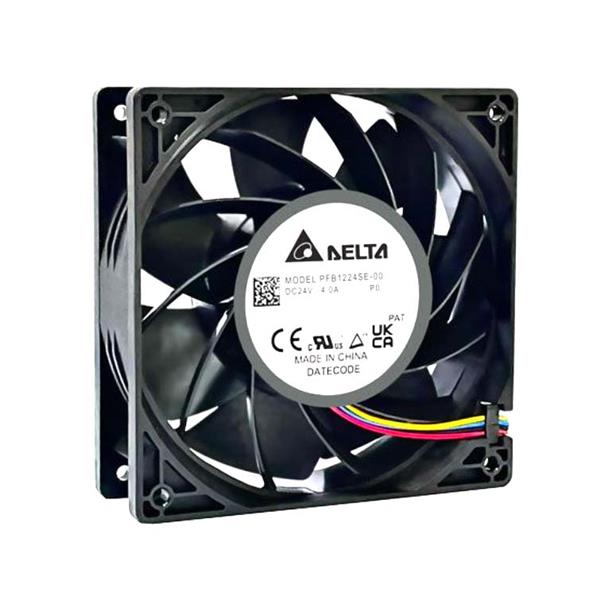

Delta Electronics, Inc. PFB1224SE-00P5 Axial Axial Fan, 120x120x38mm, 24VDC, 4x Lead Wires, Tach/PWM, IP55 Rated, Industrial
ModelPFB1224SE-00P5
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 70000 Hour
Noise: 70 dBA
Speed: 7500 RPM
Width: 38 mm
Height: 120 mm
Length: 120 mm
Airflow: 265.43 CFM (7.517 m3/min)
Features: PWM Control, Speed Sensor (Tach)
IP Rating: IP55
Width - mm: 38 mm
Height - mm: 120 mm
Length - mm: 120 mm
Bearing Type: Ball
Current Type: DC
Power Rating: 50.4 W
Housing Material: Plastic
Termination Style: Wire Leads - 4
Frame Dimensions - mm: 120 mm x 120 mm x 38 mm
Operating Supply Voltage: 14 VDC to 27.6 VDC
