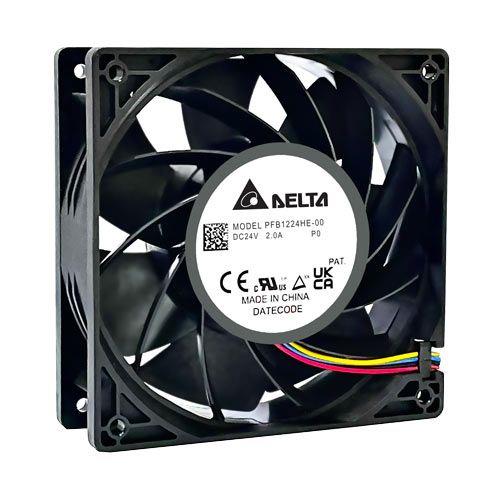

Delta Electronics, Inc. PFB1224HE-00P0 Axial DC Axial Fan, 120x120x38mm, 24VDC, 201.411CFM, 24W, 65dBA, 5800RPM, Tach/PWM
ModelPFB1224HE-00P0
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 70000 Hour
Depth: 38 mm
Noise: 65 dBA
Speed: 5800 RPM
Width: 120 mm
Height: 120 mm
Length: 120 mm
Airflow: 201.411 CFM (5.7 m3/min)
Features: Tachometer, PWM
Bearing Type: Ball
Current Type: DC
Power Rating: 24 W
Housing Material: Plastic
Termination Style: Wire Leads - 4
Frame Dimensions - mm: 120 mm L x 120 mm W x 38 mm H
Operating Supply Voltage: 24 VDC
