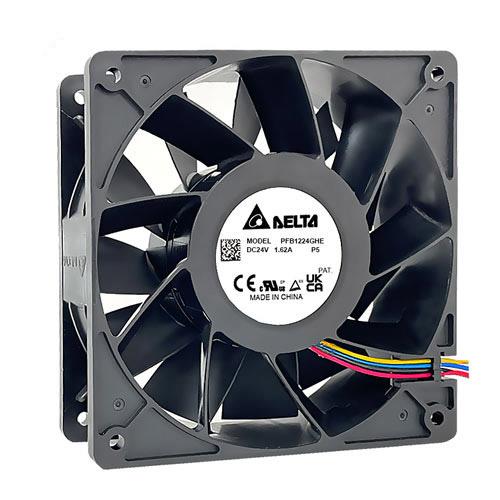

Delta Electronics, Inc. PFB1224GHEP5 Axial DC Axial Fan, 120x120x38mm, 24VDC, 212.21CFM, 32.4W, 64dBA, Tach/PWM, IP55
ModelPFB1224GHEP5
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 70000 Hour
Size: 120 mm
Depth: 38 mm
Noise: 64 dBA
Speed: 4800 RPM
Width: 120 mm
Height: 120 mm
Length: 120 mm
Airflow: 212.21 CFM (6 m3/min)
Features: Tachometer, PWM
IP Rating: IP55
Lead Length: 330 mm
Unit Weight: 380 g
Bearing Type: Ball
Current Type: DC
Power Rating: 32.4 W
Termination Style: Wire Leads - 4
Operating Supply Voltage: 24 VDC
