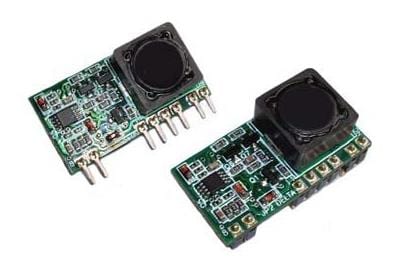

Delta Electronics, Inc. NC12S0A0H06PNFA Non-Isolated / PoL POL DC/DC Module, 6A, Horizontal

Width: 15.5 mm (0.61 in)

Height: 11.7 mm (0.461 in)

Length: 30.5 mm (1.201 in)

Industry: Industrial

Output Type: Non-Isolated POL

Unit Weight: 7.100 g

Mounting Style: Through Hole

Number of Outputs: 1 Output

Input Voltage - Max: 13.8 V

Input Voltage - Min: 10.2 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 6 A

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
