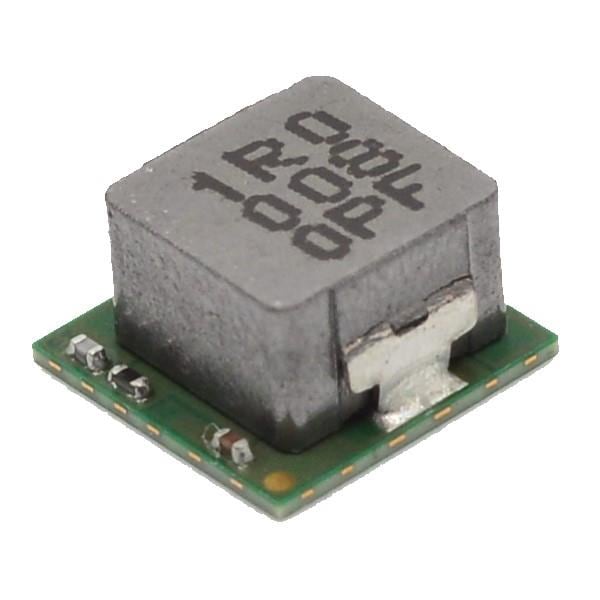

Delta Electronics, Inc. MUN3CAD03-SE Non-Isolated / PoL 3A 5Vin inductor-integrated DC-DC converter
ModelMUN3CAD03-SE
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 2.8 mm (0.11 in)
Height: 1.3 mm (0.051 in)
Length: 3 mm (0.118 in)
Industry: Industrial
Mounting Style: SMD/SMT
Number of Outputs: 1 Output
Moisture Sensitive: Yes
Input Voltage - Max: 5.5 V
Input Voltage - Min: 2.75 V
Output Current-Channel 1: 3 A
Output Voltage-Channel 1: 600 mV to 3.3 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
