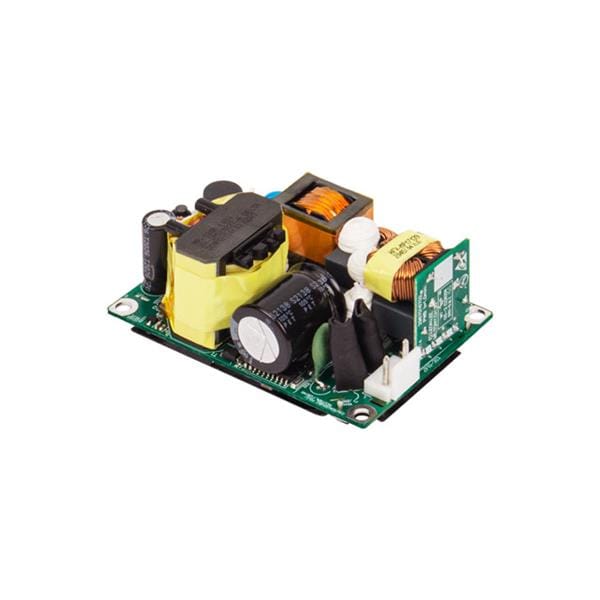

Delta Electronics, Inc. MEP-120A18J BNA Medical Power Supplies 120W/18V power supply small print

Width: 50.8 mm

Height: 31 mm

Length: 76.2 mm

Industry: Medical, Industrial

Efficiency: 94 %

Unit Weight: 140 g

Output Power: 120 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 6.67 A

Output Voltage-Channel 1: 18 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
