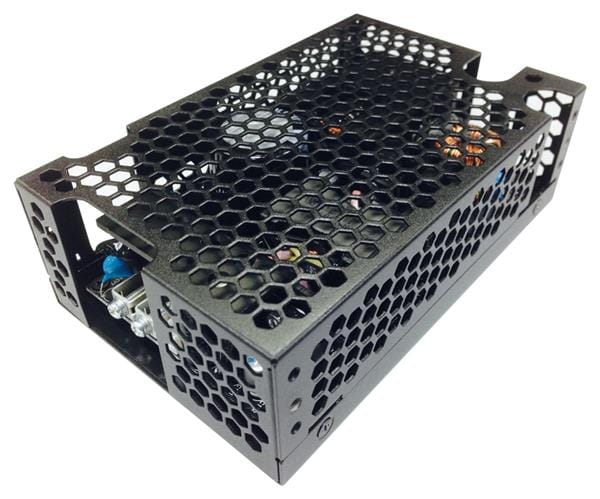

Delta Electronics, Inc. MDS-400ADB12 AA Switching Supplies 400W/12V Enclosed power supply, Remote ON/OFF

Width: 89 mm (3.504 in)

Height: 45 mm (1.772 in)

Length: 140 mm (5.512 in)

Industry: Medical

Approvals: IEC60601-1, IEC60950-1

Compliance: IEC 60601-1, IEC 60950-1

Efficiency: 92 %

Unit Weight: 605 g

Output Power: 400 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 33 A

Output Voltage-Channel 1: 12 VDC

Operating Temperature Range: - 10 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
