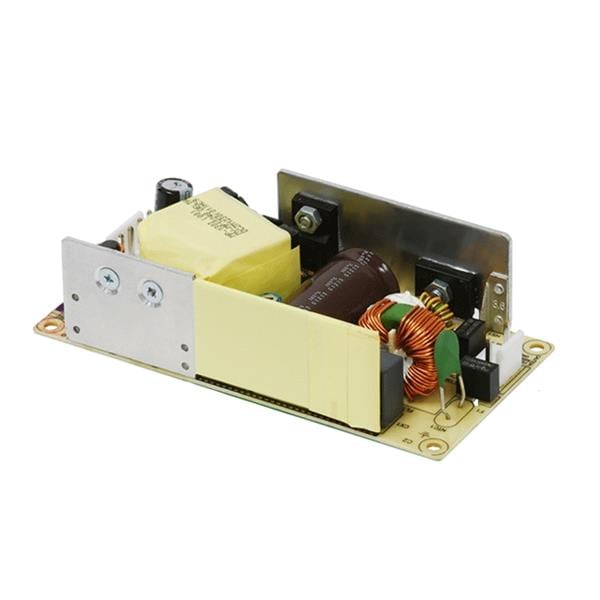

Delta Electronics, Inc. MDS-065APS18 BA Switching Supplies 65W/18V power supply

Width: 50.8 mm (2 in)

Height: 29.972 mm (1.18 in)

Length: 101.6 mm (4 in)

Industry: Medical

Approvals: EN60601-1, ES60601-1

Compliance: EN60601-1, ES60601-1

Efficiency: 87.7 %

Unit Weight: 130 g

Output Power: 65 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Power - Convection: 65 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 3.61 A

Output Voltage-Channel 1: 18 VDC
