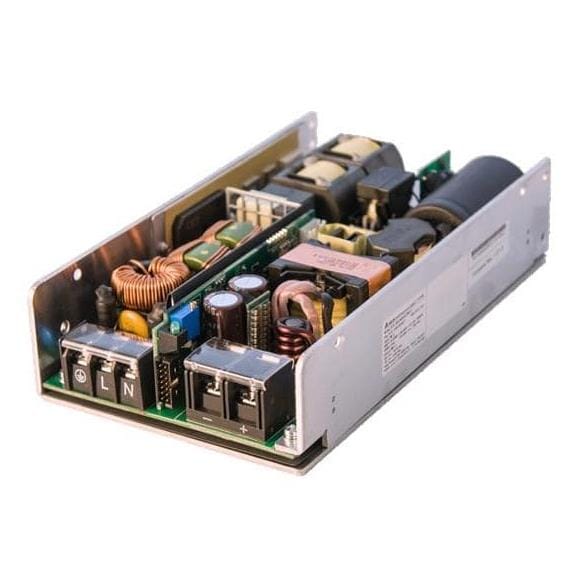

Delta Electronics, Inc. IMA-S400-48-ZNPLY Switching Power Supplies 48V 400W Non-Coated PSU IMA series (Remote On/Off setting ON)

Width: 101.6 mm (4 in)

Height: 40.6 mm (1.598 in)

Length: 176.8 mm (6.961 in)

Industry: Medical, Industrial

Efficiency: 92 %

Output Power: 400 W

Input Voltage: 80 VAC to 275 VAC

Mounting Style: Chassis

Isolation Voltage: 4 kVAC

Number of Outputs: 2 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 8.33 A

Output Voltage-Channel 1: 48 VDC

Output Voltage-Channel 2: 5 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
