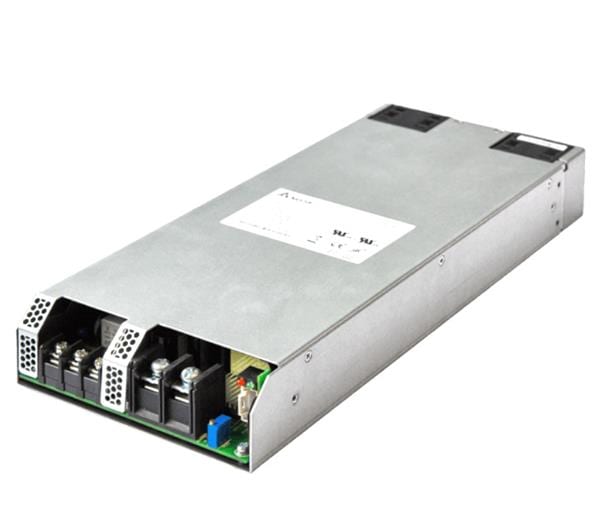

Delta Electronics, Inc. IMA-S2000-48-XYPLY Switching Supplies 48V 2000W Non-Coated PSU IMA series (Remote On/Off setting ON)

Width: 127 mm (5 in)

Height: 40.6 mm (1.598 in)

Length: 309.6 mm (12.189 in)

Industry: Medical, Industrial

Efficiency: 95 %

Unit Weight: 2 kg

Output Power: 2 kW

Input Voltage: 80 VAC to 275 VAC, 120 VDC to 300 VDC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 41.6 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
