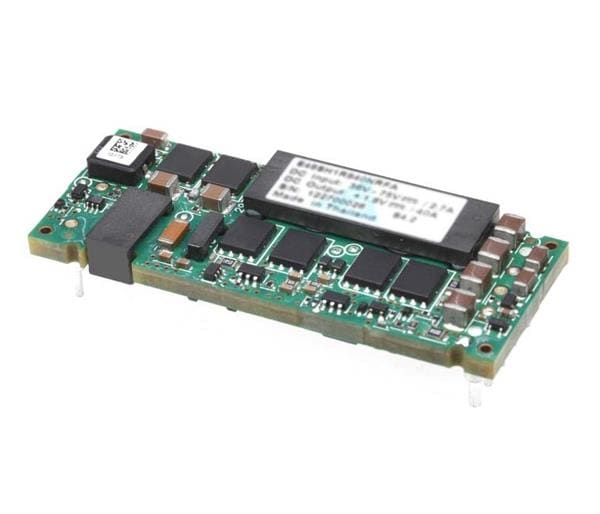

Delta Electronics, Inc. E48SH3R330NRFA Isolated DC/DC Converter, 1/8 Brick, 3.3V, 30A

Width: 22.8 mm (0.898 in)

Height: 9.5 mm (0.374 in)

Length: 58.4 mm (2.299 in)

Industry: Industrial

Unit Weight: 22 g

Output Power: 120 W

Input Voltage: 36 V to 75 V

Mounting Style: Through Hole

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 36 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 30 A

Output Voltage-Channel 1: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
