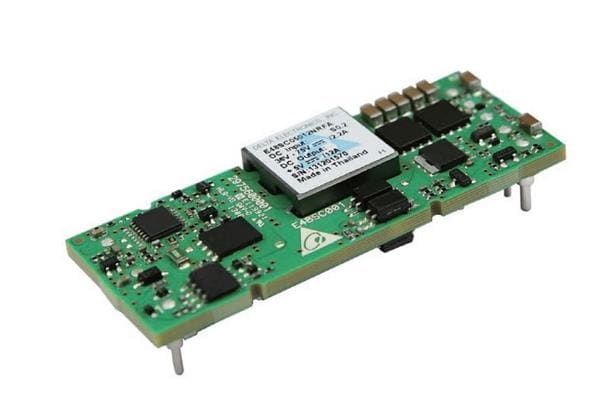

Delta Electronics, Inc. E48SC12005NNFH Isolated 36-75Vin 12Vout 5A 1/8 Brick Neg Logic, 0.145 pin, baseplate

Width: 22.8 mm (0.898 in)

Height: 8.4 mm (0.331 in)

Length: 58.4 mm (2.299 in)

Industry: Industrial

Unit Weight: 21 g

Input Voltage: 36 V to 75 V

Mounting Style: Through Hole

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 36 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 117 C

Minimum Operating Temperature: - 40 C
