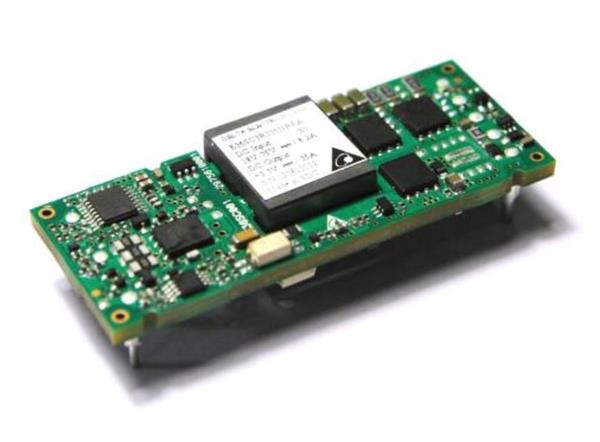

Delta Electronics, Inc. E36SC12009NRFH Isolated 18-75Vin 12V 9A Neg .17 pin Baseplate

Width: 22.8 mm (0.898 in)

Height: 12.7 mm (0.5 in)

Length: 58.4 mm (2.299 in)

Industry: Industrial

Efficiency: 92 %

Unit Weight: 33.200 g

Output Power: 108 W

Input Voltage: 18 V to 75 V

Mounting Style: Through Hole

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 9 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
