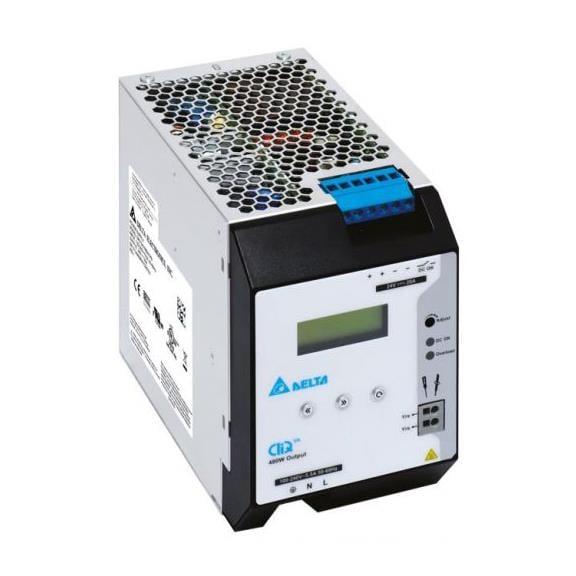

Delta Electronics, Inc. DRV-24V480W1PN Linear Supplies 480W 24V 20A Din Rail PowerSupply

Width: 82 mm (3.228 in)

Height: 149 mm (5.866 in)

Length: 124 mm (4.882 in)

Industry: Industrial

Input Type: 1-Phase / Single Phase

Unit Weight: 1.45 kg

Output Power: 480 W

Input Voltage: 85 VAC to 276 VAC

Mounting Style: DIN Rail Mount

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 20 A

Output Voltage-Channel 1: 24 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
