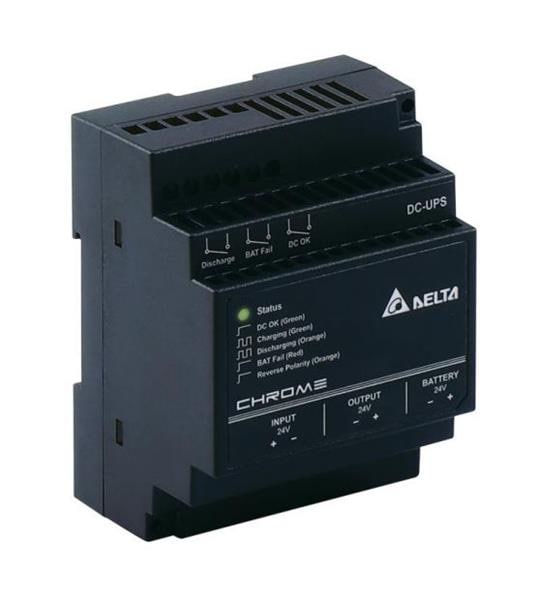

Delta Electronics, Inc. DRU-24V10ACZ UPS - Uninterruptible Power Supplies 24-28Vdc 24Vdc 10A DC UPS DIN Module

Width: 71 mm

Height: 55.6 mm

Length: 91 mm

IP Rating: IP20

Efficiency: 99 %

Unit Weight: 140 g

Output Power: 240 W

Input Voltage: 24 VDC to 28 VDC

Cooling Method: Convection

Mounting Style: DIN Rail

Isolation Voltage: 1 kV

Number of Outputs: 1 Output

Input Voltage - Max: 28 V

Input Voltage - Min: 24 V

Input Voltage, Nominal: 24 V

Standard Packaging Size: 91 mm x 71 mm x 55.6 mm

Output Current-Channel 1: 10 A

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
