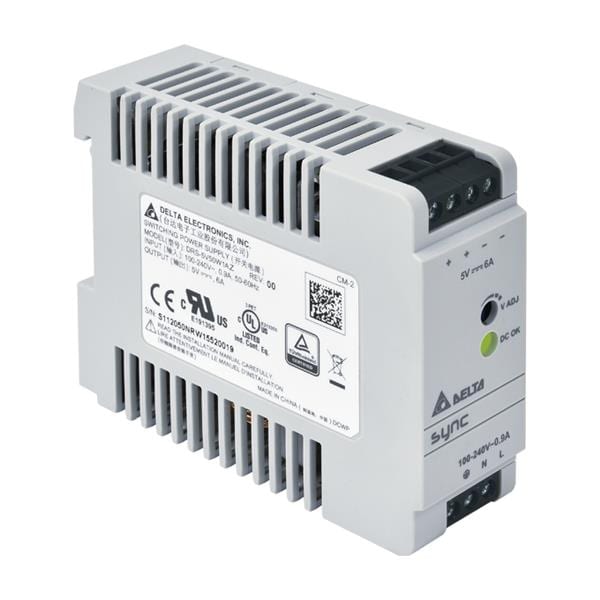

Delta Electronics, Inc. DRS-5V50W1AZ Switching Supplies DIN Rail Power Supply, Single Phase, 5Vout, 50W, Non NEC Class II, No DC OK Relay Contact

Width: 29.972 mm (1.18 in)

Height: 89.408 mm (3.52 in)

Length: 74.93 mm (2.95 in)

Industry: Industrial

Dimensions: 1.18 in x 3.52 in x 2.95 in

Input Type: 1-Phase / Single Phase

Unit Weight: 160 g

Output Power: 30 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: DIN Rail Mount

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 6 A

Output Voltage-Channel 1: 5 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
