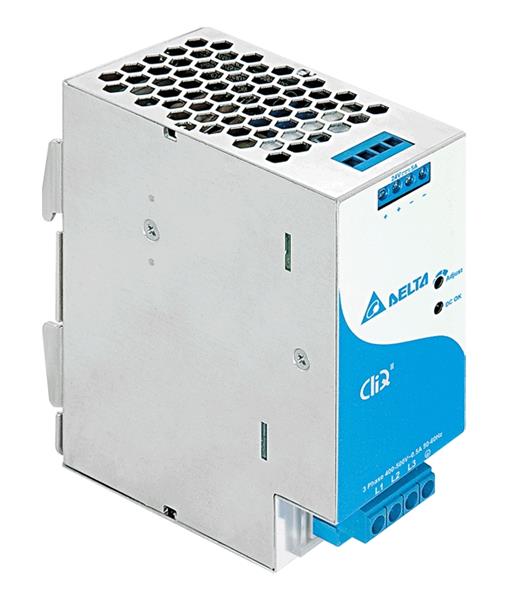

Delta Electronics, Inc. DRP024V120W3BA Switching Supplies 120W 3Ph / 24V

Width: 50.038 mm (1.97 in)

Height: 117.348 mm (4.62 in)

Length: 120.904 mm (4.76 in)

Industry: Industrial

Input Type: 3-Phase / Three Phase

Output Power: 120 W

Input Voltage: 400 VAC to 500 VAC

Mounting Style: DIN Rail Mount

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 5 A

Output Current-Channel 2: 7.5 A

Output Voltage-Channel 1: 24 VDC

Output Voltage-Channel 2: 24 VDC

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 25 C
