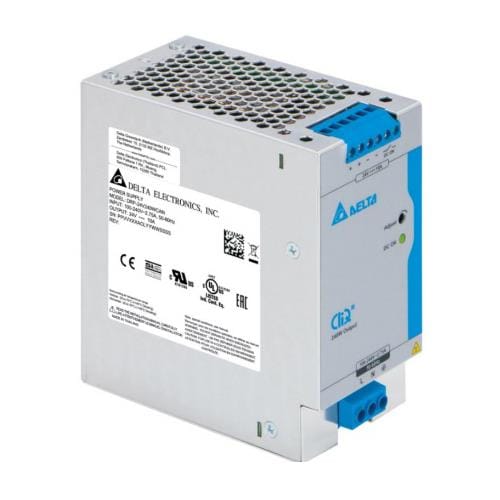

Delta Electronics, Inc. DRP-24V240W1CAN Switching Supplies 240W / 24V

Width: 60 mm (2.362 in)

Height: 117 mm (4.606 in)

Length: 124 mm (4.882 in)

Industry: Industrial

Input Type: 1-Phase / Single Phase

Unit Weight: 840 g

Output Power: 240 W

Input Voltage: 88 VAC to 264 VAC

Mounting Style: DIN Rail Mount

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 10 A

Output Voltage-Channel 1: 24 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
