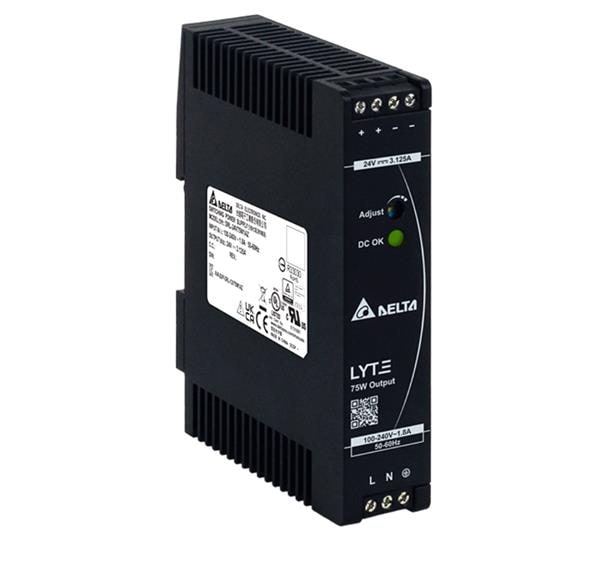

Delta Electronics, Inc. DRL-24V75W1AZ Switching Supplies Lyte Series, DIN Rail Power Supply,75W / 24V

Width: 27 mm (1.063 in)

Height: 123.6 mm (4.866 in)

Length: 102 mm (4.016 in)

Industry: Industrial

Input Type: 1-Phase / Single Phase

Unit Weight: 220 g

Output Power: 75 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 375 VDC

Mounting Style: DIN Rail Mount

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 3.125 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
