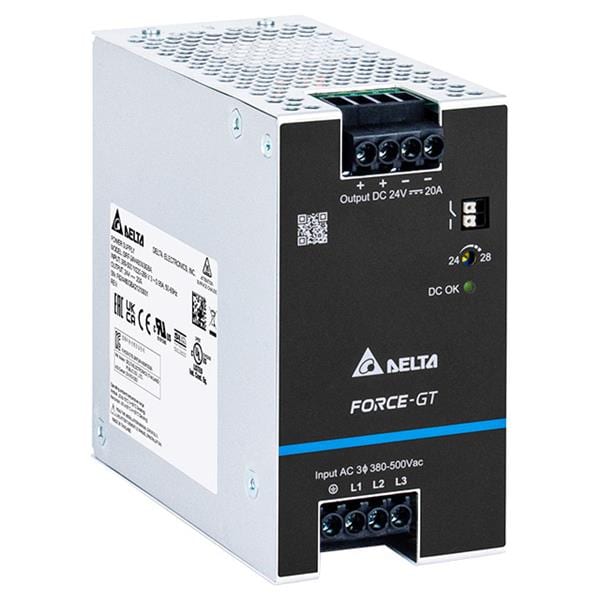

Delta Electronics, Inc. DRF-24V480W3GBA Switching Supplies DIN-Rail PS 480W / 24V (coated, 3ph)

Width: 65 mm (2.559 in)

Height: 124 mm (4.882 in)

Length: 127.3 mm (5.012 in)

Industry: Industrial

Input Type: 3-Phase / Three Phase

Unit Weight: 1.2 kg

Output Power: 480 W

Input Voltage: 320 VAC to 575 VAC

Mounting Style: DIN Rail Mount

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
