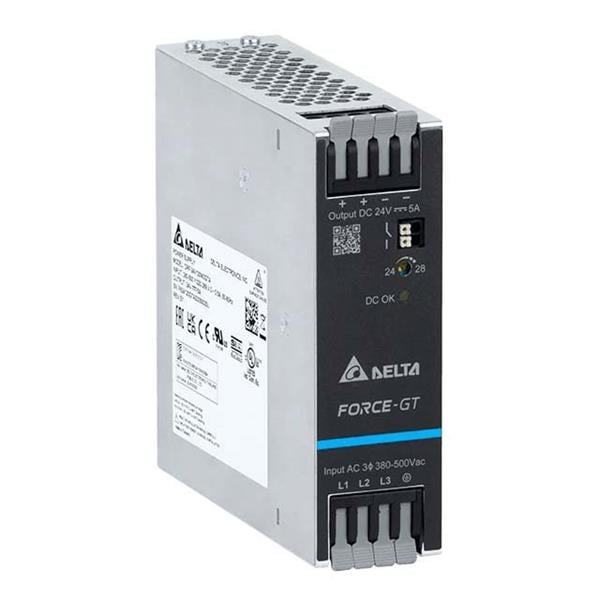

Delta Electronics, Inc. DRF-24V120W3GTA Switching Supplies 120W 24V 5A 3 Phase 320-575Vac or 2 Phase 340-575Vac Spring Clamp Terminal

Width: 38 mm (1.496 in)

Height: 124 mm (4.882 in)

Length: 125.3 mm (4.933 in)

Industry: Industrial

Input Type: 3-Phase / Three Phase

Unit Weight: 539.774 g

Output Power: 120 W

Input Voltage: 380 VAC to 500 VAC, 450 VDC to 800 VDC

Mounting Style: DIN Rail Mount

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
