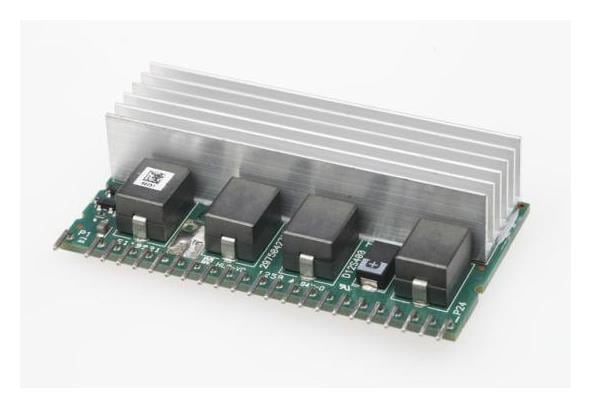

Delta Electronics, Inc. D12S400 A Non-Isolated / PoL POL DC/DC Module, 80A, Vertical

Width: 32 mm (1.26 in)

Height: 12.29 mm (0.484 in)

Length: 61 mm (2.402 in)

Industry: Industrial

Output Type: Non-Isolated POL

Unit Weight: 35 g

Output Power: 400 W

Mounting Style: Through Hole

Number of Outputs: 1 Output

Input Voltage - Max: 13.2 V

Input Voltage - Min: 10.8 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 80 A

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: 0 C
