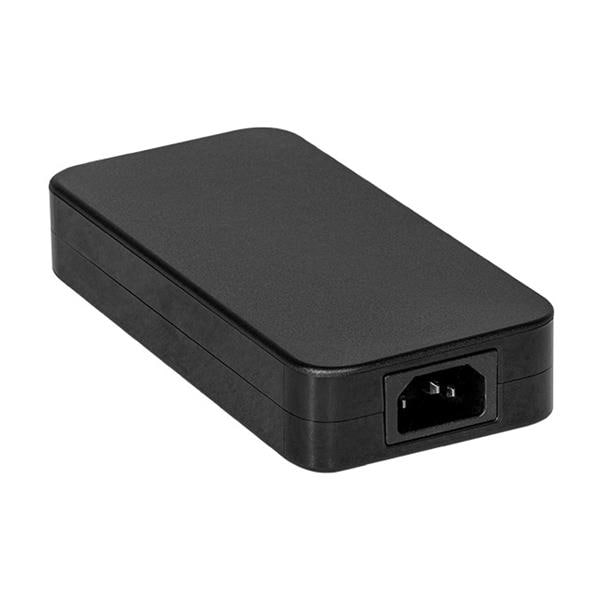

Delta Electronics, Inc. ADT-150C24AC K-A Desktop AC Adapters 150w / 24V adapter - C14 - Din4

Width: 76.1 mm

Height: 31.5 mm

Length: 165.1 mm

Industry: Industrial

Approvals: IEC 62368-1, EN 62368-1, UL 62368-1, IEC 60950-1, EN 60950-1

Efficiency: 91 %

Unit Weight: 470 g

Output Power: 150 W

Input Voltage: 90 VAC to 264 VAC

Connector Type: DIN Connector

Mounting Style: Desktop

Load Regulation: Regulated

Number of Outputs: 1 Output

DC Output Connector: 4 Pin DIN

DC Output Cord Length: 1800 mm

Output Current-Channel 1: 6.25 A

Output Voltage-Channel 1: 24 V

AC Plug included/required: Required

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 10 C
