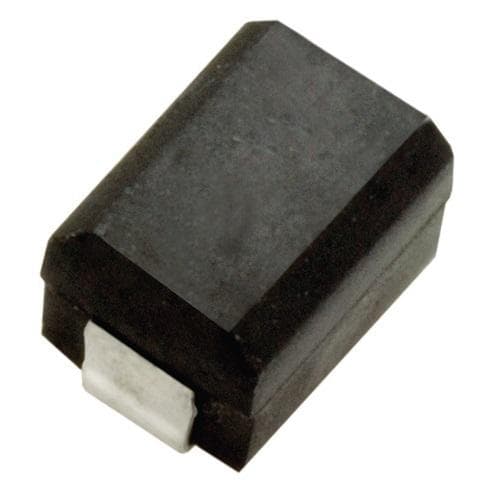

Delevan SP1812R-223H Power Inductors RoHS, Surface Mount, Shielded Power Inductor, 22 uH , +/- 3%
ManufacturerDelevan(View more products from this manufacturer)
ModelSP1812R-223H
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 3.4 mm
Height: 3.4 mm
Length: 4.83 mm
Shielding: Shielded
Tolerance: 3 %
Inductance: 22 uH
Application: Power
Termination: Standard
Unit Weight: 27 mg
Core Material: Ferrite
Mounting Style: PCB Mount
Termination Style: SMD/SMT
Maximum DC Current: 509 mA
Maximum DC Resistance: 750 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
