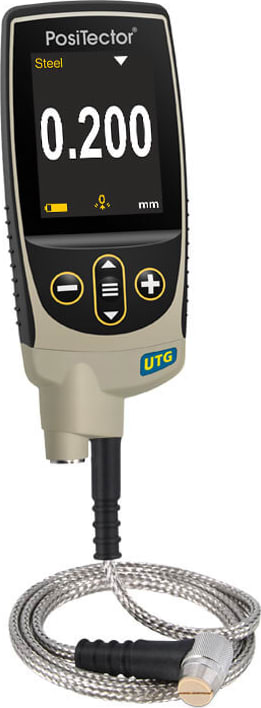

DEFELSKO UTGCX1 Ultrasonic Thickness Gage

Application: Measures the wall thickness of materials such as steel, plastic and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side

5 MHz Dual Element transducer with braided stainless steel cabled probe

Same specifications and operation as the popular UTG C but with a durable cable and heavy-duty strain relief for demanding applications

- Probe Style: 5 MHz Dual Element

- Mode: Single Echo

- Measurement Range: 1.00 to 125.00 mm (0.040" to 5.000")

- Thru-Paint Capability: no

- Measurement Rate – Normal: 6 readings/sec

- Measurement Rate – Normal: 20 readings/sec

- Resolution: 0.01 mm (0.001")

- Accuracy: ±0.03 mm (±0.001")

- Monochrome display with transflective technology enhances sunlight readability

- Storage: 1000 per probe

- Automatic V-Path compensation for thin materials

SIZE: 146 x 61 x 28 mm (5.75" x 2.4" x 1.1")

WEIGHT: 140 g (4.9 oz.) without batteries

ALL GAGES COME COMPLETE with body and probe, couplant, protective rubber holster, belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, PosiTector.net account
