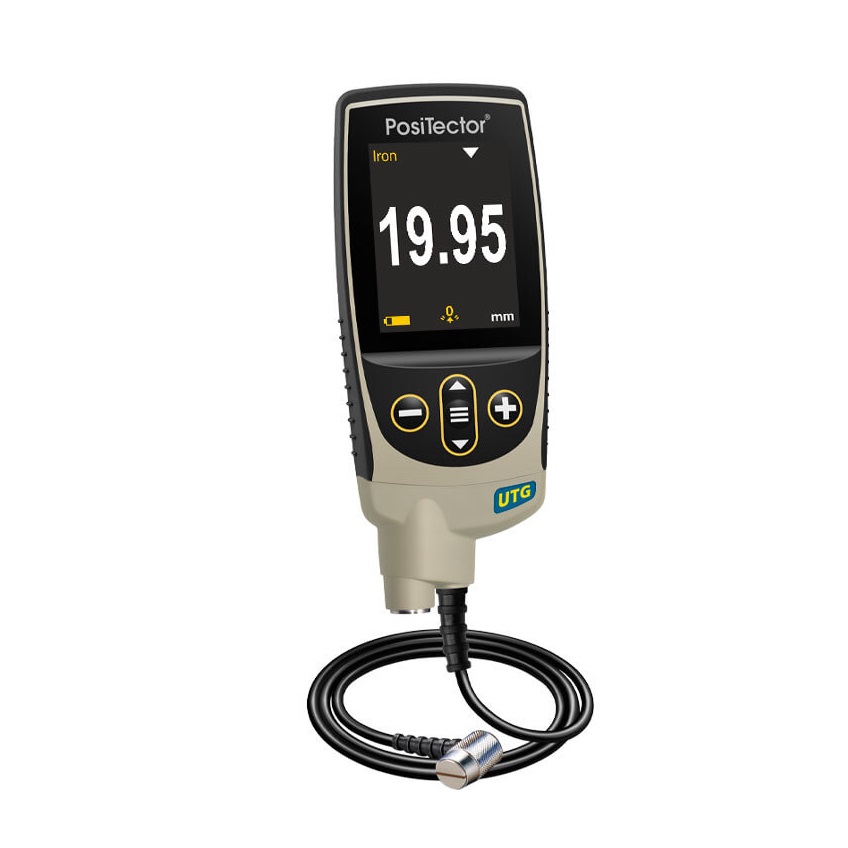

DEFELSKO UTG CLF3 Ultrasonic Thickness Gages Measures Wall Thickness for cast Iron (Advanced)
HiLo alarm — Audibly and visibly alerts when measurements exceed your specified limits: Yes
Min Scan - measurement rate of up to 20 readings per second with on-screen min and max for quick inspection over a large area
Statistics Mode — Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
A Scan - with adjustable Gain with screen capture for further analysis and documentation
B Scan - display in which a cross sectional profile of the test material is represented •
Graphics readout for detailed analysis of the coating system
Onscreen Batch Annotation — Add notes, change batch names and more with built-in
QWERTY keyboard •
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
Connection Options: Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
Probe Type: UTG CLF; 2.25 MHz Dual Element
Thru-Paint Capability: No
Range: 0.040” to 5.000”, 1.00 to 125.00 mm
Resolution: 0.001”, 0.01 mm
Accuracy: ±0.001”; ±0.03 mm
