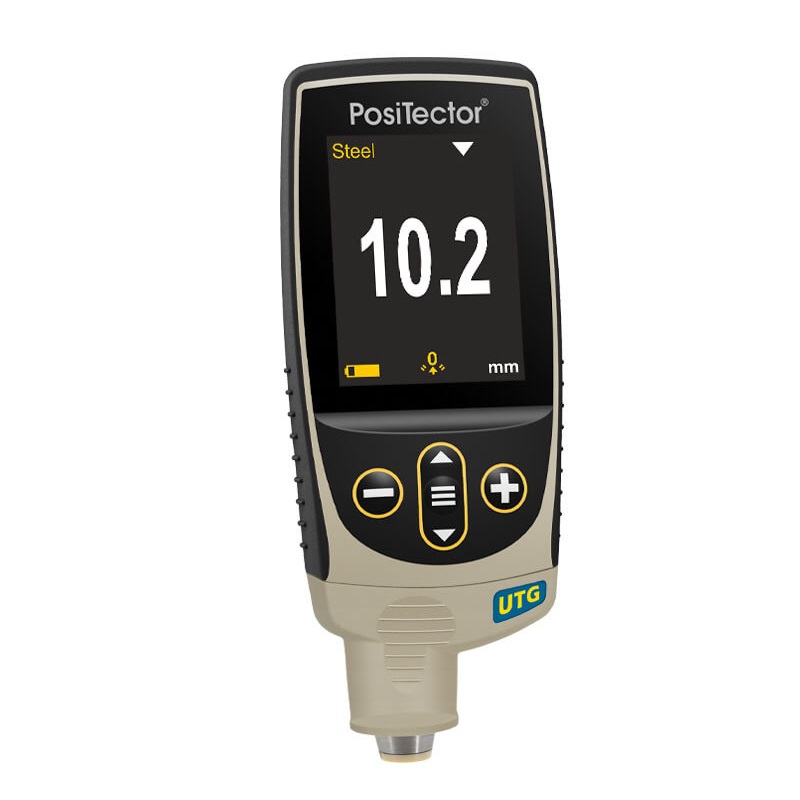

DEFELSKO UTG CA1 Ultrasonic Thickness Gages Measures Wall Thickness (Standard)

HiLo alarm — Audibly and visibly alerts when measurements exceed your specified limits: Yes

Min Scan - measurement rate of up to 20 readings per second with on-screen min and max for quick inspection over a large area

Statistics Mode — Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring

Connection Options: Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.

Probe Type: 5 MHz Dual Element

Thru-Paint Capability: No

Range: 0.040” to 5.000”, 1.00 to 125.00 mm

Resolution: 0.001”, 0.01 mm

Accuracy: ±0.001”; ±0.03 mm
