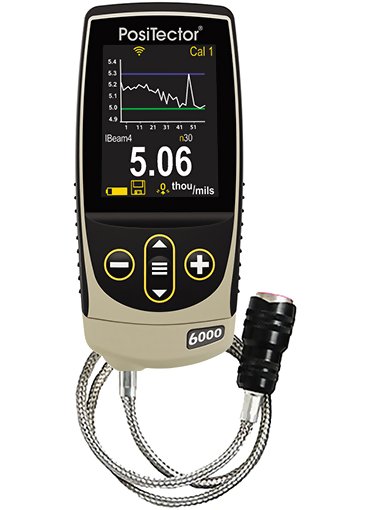

DEFELSKO FTS3 Coating Thickness Gage (0 – 6 mm, Ferrous)

- Probe: Ferrous

Non-Magnetic coat-ings on FerrousMetals (Steel & Iron)

- Range: 0 – 6 mm (0 – 250 mils)

- Accuracy:

±(0.01 mm + 1%) 0 – 2.5 mm

±(0.01 mm + 3%) > 2.5 mm

- Hi Contrast reversible color LCD

- Storage of 100,000 readings in up to 1,000 batches and sub-batches

- Onscreen help, real time graphing, picture prompting and more

- Batch annotation—add notes and change batch names with onscreen

QWERTY keyboard

- WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates and connects with mobile devices for expanded functionality

- Data transfer via USB to a PC or via Wireless Technologyto a PC or printer

- Scan mode—take continuous readings without lifting the probe

- Multiple stored calibration adjustments for measuring on a variety

of substrate conditions

- SSPC PA2 feature determines if film thickness over a large area conforms to user-specified min/max levels

- PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings

- Size: 137 x 61 x 28 mm (5.4" x 2.4" x 1.1")

- WEIGHT: 140 g (4.9 oz.) without batteries

complete with Standard: gage body, F probe, precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, download software PosiTector.net
