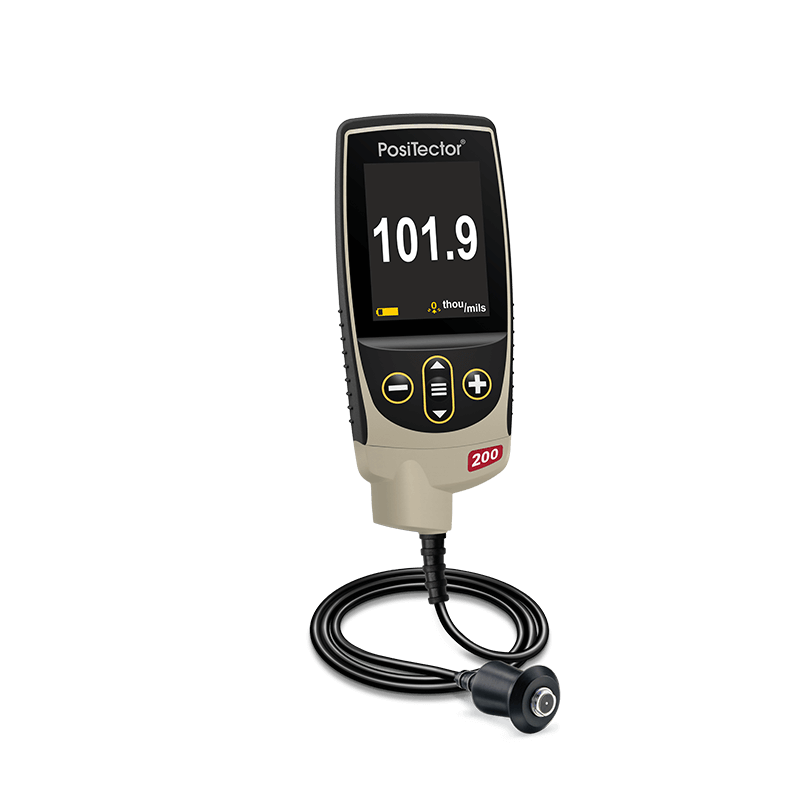

DEFELSKO 200B1 Coating Thickness Gage for Non-METAL Substrates

- Application: Polymer coatings on wood, plastic, etc.

- Probe: Ultrasonic

- Measures Total Thickness

- Range: 13 – 1000 microns (0.5 – 40 mils)

- Accuracy: ± (2 microns + 3% of reading)

- Minimum Individual Layer Thickness: 13 microns

- Measure the total thickness of a coating system

- Monochrome display with transflective technology enhances

sunlight readability

- Storage of 250 readings—stored readings can be viewed or downloaded

- SIZE: 135 x 61 x 28 mm (5.25" x 2.4" x 1.1")

- WEIGHT: 140 g (4.9 oz.) without batteries

COMPLETE with body and probe, couplant (ultrasonic gel), precision plastic shims, protective rubber holster, belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, PosiSoft.net account,
