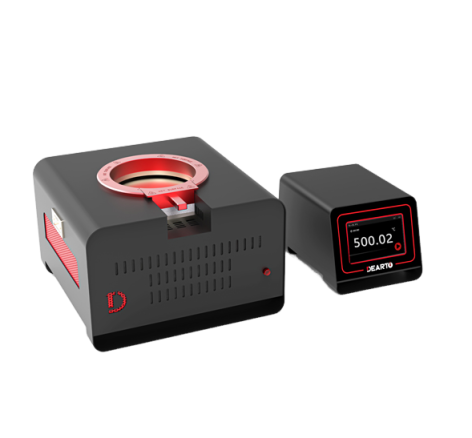

Dearto DTZ - 460BG Surface Probe Temperature Calibrator (50℃ ~ 600℃)

Temperature range: 50℃ ~ 600℃

Calibration plane diameter: 130mm

Uniformity:

0.3℃ @RT ≤ t ≤ 100℃

0.7℃ @100℃ ＜t ≤ 300℃

1.2℃ @ 300℃＜ t ≤ 400℃

1.8℃ @ 400℃ ＜t ≤ 500℃

Stability (10min):

±0.2℃ / 10min @ RT ≤ t ≤100℃

±0.3℃ / 10min@100℃＜t ≤ 300℃

±0.4℃ / 10min@300℃＜t ≤ 400℃

±0.6℃ / 10min@400℃＜t≤ 500℃

Resolution: 0.01℃

Temp. rising time: Room temperature to 400℃, 30min

Temp. falling time: 400℃ to room temperature (with rapid cooling device only 45min)

Stabilization time: 8min

Communication Interface: RS-232

Sensor type: RTD / Pt100

Heating furnace size: 325(L)×323(W)×214(H) mm

Controller size: 220(L)×175(W)×144(H) mm

Total Weight: 12kg

Storage condition: − 20℃ ~ 60℃ (- 4℉~ 140℉), 5%RH ~ 80%RH ( No condensation )
