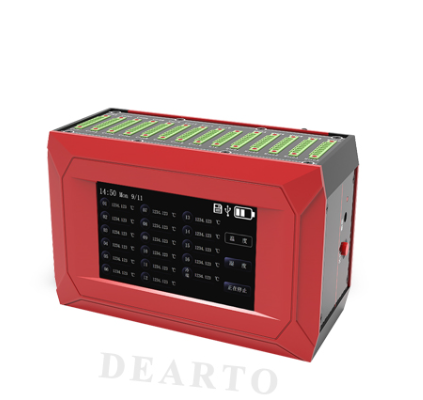

Dearto DTZ-300BX1609 Temperature and Humidity Data Acquisition Logger

Temperature Parameters:

Type/Temperature range/Accuracy

Four-wire industrial grade PRT: Pt100: -200 ～ 800℃/±0.1℃

TC:

Type/Temperature range/Accuracy

K/ -200 ～ 0℃/ ±（T ×0.155%+0.05）℃

K/ 0 ～ 1372℃/ ±（T × 0.077% +0.05）℃

J/ -200 ～ 0℃/ ±（T × 0.15% +0.05）℃

J/ 0 ～ 1200℃/  ±（T × 0.065% +0.05）℃

E/ -200 ～ 0℃/ ±（T × 0.121% +0.05）℃

E/ 0 ～ 1000℃/ ±（T × 0.065% +0.05）℃

N/ -200 ～ 0℃/ ±（T ×  0.180% +0.08）℃

N/ 0 ～ 1300℃/ ±（T × 0.065% +0.08）℃

R/ 0 ～ 1768℃/ ±（T × 0.07% +0.4）℃

S/ 0 ～ 1768℃/ ±（T × 0.07% +0.4）℃

B/ 400 ～ 1820℃/  ±（T × 0.065%）℃

T/ -250 ～ 0℃/ ±（T × 0.10%+0.05）℃

T/ 0~400℃/ ±（T × 0.065%+0.05）℃

Resolution: 0.001

Humidity Sensor

Range: 0 ~ 100%RH

Resolution: 0.01%RH

Accuracy: ±1.5%

Electrical Parameters

Input voltage: 4.5-5.5V

Input Current: Max 2.2A

Battery: 4.2V / 20000mAh

Battery time: ≥ 30H

Display: 5-inch capacitive screen

Resolution: 854×480

Working temperature: -10 ～ 50℃

Working humidity: ≤80%RH

Hardware parameters

Power switch: Anti-accidental touch slide switch

Charging interface: DC6.4×2.1

Dimensions(mm): 180×150×70

Weight: ＜1.5KG

Communication Interface: AUX3.5mm; U disk interface; USB 2.0

16 temperature sensor interfaces + 1 cold end interface: Embedded wiring terminals

9 humidity sensor interface: Embedded wiring terminals
