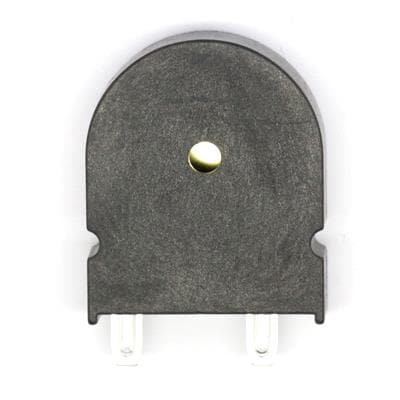

DB Unlimited TP262003-1 Piezoelectric Piezo Transducer
ManufacturerDB Unlimited(View more products from this manufacturer)
ModelTP262003-1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Shape: Ellipse
Width: 7 mm
Height: 26.5 mm
Length: 22 mm
Frequency: 2 kHz
Dimensions: 26.5 mm x 7 mm x 26.5 mm
Width - in: 0.276 in
Width - mm: 7 mm
Height - in: 1.043 in
Height - mm: 26.5 mm
Length - in: 1.043 in
Length - mm: 26.5 mm
Unit Weight: 3 g
Current Rating: 1 mA
Mounting Style: PCB Mount
Voltage Rating: 3 V
Termination Style: Solder Pin
Sound Pressure Level: 70 dBA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
