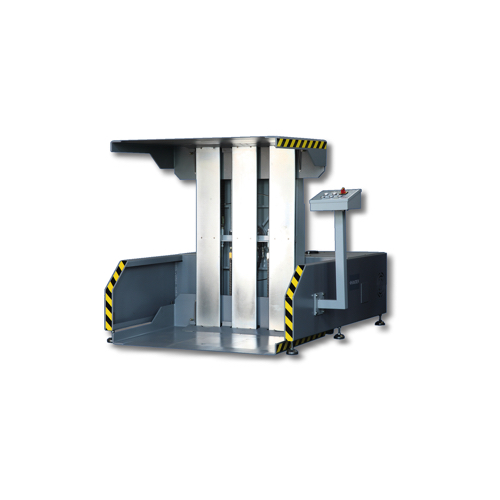

DATIEN DPT-165A/140 Paper Pile Turner (120 x 165 cm; 140 cm)

A Machine Width: 199 cm

B Machine Length: 260 cm

C Machine Height: 212 cm

D Clip table width: 165 cm

E Clip table length: 120 cm

F Maximum paper clamping height (with two pallets): 140 cm

G Minimum paper clamping height (with two pallets): 62 cm

H Total width of machine with console: 230 cm

I Machine operation requirements (L × W × H): 290 x 245 x 235 cm

Maximum loading area: 120 × 165 cm

Maximum horsepower: 2.5 kW

Total machine weight: 2360 kg

Maximum load weight: 1200 kg

※ Specifi cation could be changed for improvement without prior notice.
