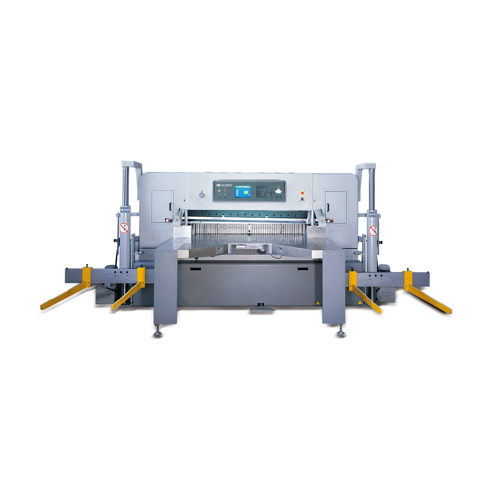

DATIEN CT-155E / 2L Paper Cutter (1150x165x1150mm; Cutter + double-sided lifting platform)

A Cutting Width: 155 cm

B Cutting Height: 16.5 cm

C Cutting Length: 155 cm

D Front Table Length: 75cm

E Table Height: 90 cm

F Machine Width: 328 cm

G Machine Height: 168 cm

H Machine Length: 308 cm

K Machine Front Length: 89 cm

Smallest Cut-with clamp: 10 cm

without clamp: 4 cm

Cutting Cycle Per Minute: 42 cm

Clamp Pressure: 400-4500 kg(880-9900lb)

Net Weight: 5100 kg

Main Motor: 7.5 kw(10HP)

Backgauge Motor: 1 kw(1.34HP)

Air Blower For Table: 0.75 kw(1HP)

Power Requirement: 9.25 kw(12.34HP)

* Specification could be changed for improvement without prior notice.
