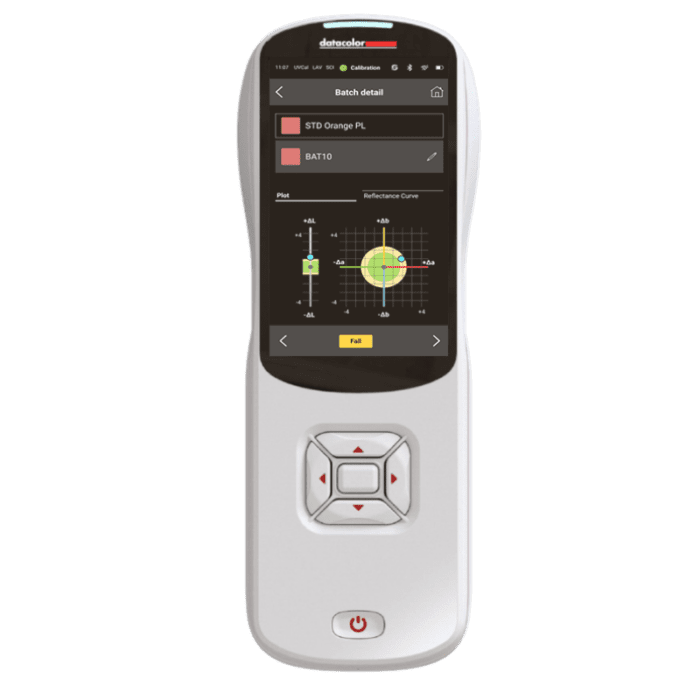

Datacolor Spectro P300 Portable spectrophotometer (0-200%)

Measuring Geometry: d/8°

Sphere Diameter: 54 mm (2.5 inches)

Light Source: Pulsed Xenon

Spectral Range: 400-700 nm

Effective Bandwidth: 10 nm

Reflectance Range: 0-200%

Spectrophotometer Principle: Concave holographic grating

Observer: 2° Standard Observer, 10° Standard Observer

Detector: Dual 256 element diode array

Color Repeatability: <0.03 CIELab dE* max on white ceramic tile

Color IIA: 0.15 CIELab dE*avg of 12 BCRA tiles;0.25 CIELab dE* max on any BCRA tile

Measurement Time: 2 sec (Gloss off & Image capture off)

Measurement Interval: 3.67 sec (Gloss on & Image capture on with 2 flashes)

UV Setting: 100% / 0% / Adjusted (Instantaneous numerical adjustment of UV with no mechanical filter); 400 nm UV cutoff filter

UV Calibration Support: CIE Whiteness / Ganz-Griesser

Apertures: Dual Apertures

Illuminated / measured: LAV/SAV

LAV: 15mm / 11mm: LAV/USAV

SAV: 10mm / 6.5mm: SAV/USAV

USAV: 6.5mm / 2.5mm:

Battery Type: Rechargeable Li-Ion Battery (Removable)

Battery Performance: 2000+ Dual Flash Measurements

Sample Placement: Camera (Live View Alignment)

Interface: USB-C / Bluetooth® / Wi-Fi

Operating Environment: 5º to 40ºC up to 85% RH, non-condensing

Screen Display: 4” TFT LCD 480×800 Pixels Display with Touchscreen

Display Resolution: 480 x 800

Weight: 0.81 Kg (1.8 lbs)

Dimensions: 229 x 89 x 81 mm (L x W x H)

Color Evaluations: CIELabCh, CIELab, CIELCh, XYZ, Whiteness CIE, Whiteness E313, Yellowness E313, Reflectance, Measurement Parameters, CMC, CIE94, CIE2000, Hunterlab, 555 Sort Code, Metamerism DIN, Metamerism CIE, Whiteness Stensby, Whiteness Berger, Whiteness Hunter, Strength, Contrast Ratio, ISO/AATCC Fastness, ISO/AATCC Staining, FMC II, PQS II, PQS II GEE9F6, LRV Equation, Optical Density*

Illuminants: A, C, D65, D50, D55, D75, F02, F07, F11, TL83, TL84, U3000, Horizon, U3500, LEDT8G, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2

Result Display Items: Colorimetric Values / Pass-Fail Judgment / Color Difference Plot / Reflectance Curve / Captured Image

Data Storage: 1000 standards, 5000 batches

Languages: English, French, German, Spanish, Italian, Simplified Chinese, Korean, Portuguese, Polish

Export Data Format: QTX, CSV, CXF, Excel

Datacolor Software Compatibility: Tools, Match Station, Match Textiles, Match Pigment, Paint, Colibri
