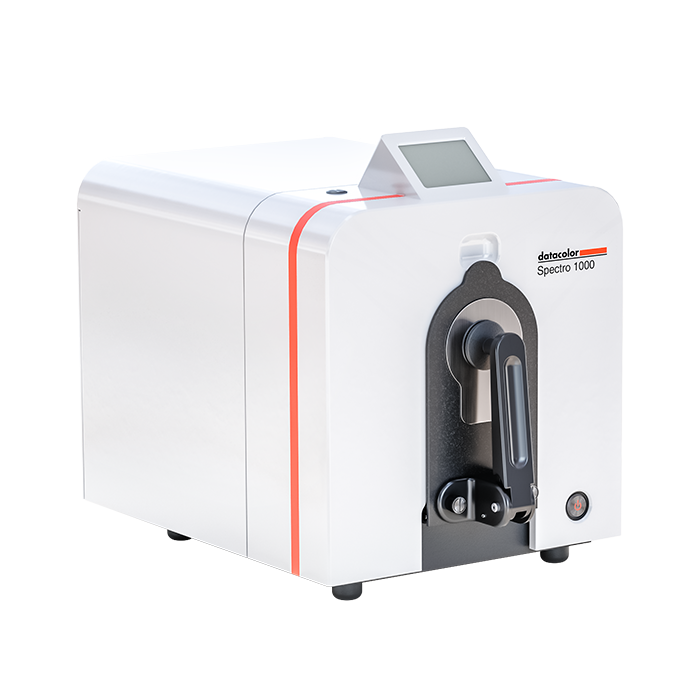

Datacolor Datacolor Spectro 1000 Close-tolerance benchtop spectrophotometer (0 - 200%, horizontal mount)

Instrument Type :Dual beam d/8° spectrophotometer

Illumination Source :Pulsed xenon filtered to approximate D65

Sphere Diameter :152mm/6in

Wavelength Range :360 nm -700 nm

Reporting interval :10 nm

Photometric range :0-200%

Spectral Analyzer :SPX Analyzer

20 read repeatability on white tile using double flash (CIELAB) * :0.01 (max)

Inter-instrument agreement: reflectance measurements (CIELAB)*:0.08 (avg); 0.15 (max)

Sample Temperature :LAV aperture

IR Sensor Accuracy :±0.9°F/ ±0.5°C

Lens :4 position auto-zoom

Aperture Plates :3 standard: LAV (30mm illuminated, 26mm measured) SAV (9mm illuminated, 5 mm measured) USAV (6.6 mm illuminated, 2.5 mm measured); 2 optional: MAV (20 mm Illuminated, 16 mm measured) XUSAV (3.0 mm illuminated, 2.5 mm measured)

Aperture detection :Yes

Automated, adjustable UV calibration :Yes

UV cutoff filters :400 nm; 420 nm; 460 nm

Remote Measurement Button :Yes

Sample Positioning Camera :Yes

Transmittance: No

Inter-instrument agreement – regular transmittance at 550 nm:No

Inter-Instrument agreement -transmission haze measurements:No

Transmission sampling aperture size:No

Operating Environment :Temperature: 5°C to 40°C, Max Relative Humidity 20%-85% non-condensing. Recommended; Relative Humidity 50% +/- 15% non-condensing

Vertical Mount :No

Physical Specifications Description:

Color Display :3.5 inch RGB LCD

Display Resolution :320x240 pixel resolution

Weight :44.0 lbs (20 kg)

Dimensions Size: :L 16.4” (41.66cm) front to back,L 18.3” (46.48 cm) sample arm to back,H 15.3” x W 12.3”(38.86 cm x 31.24cm)
