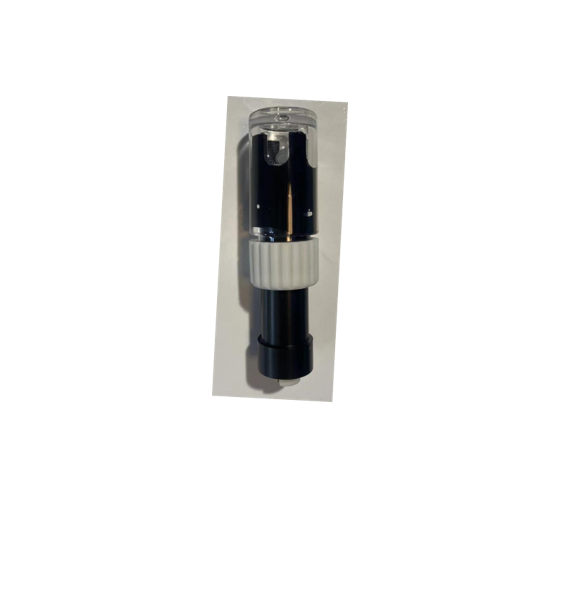

Daruifuno DPH890-CG-02 PH Sensor replacement head (RS485, for DUC2-PH series)

Communication: RS485MODBUS-RTU

Response Time: T90＜10s

Work Pressure: ≤1 Bar

Sample Flow Rate: 0.5m/s≥ flow rate ≥0.001m/s

Operating Temp: 0~50℃ (doesnot freeze)

Storage Temp: 0~60℃ (does not freeze)

Dimension: Diameter: 38mm length:270 mm (Body: D38mm, L 270mm Head: D 27mm L: 115mm)

Mounting Thread: Immersedor pipedinstallation(Requires mounting accessory support)

Lead interface: One-pieceor split M16 connector

Protection Grade:IP68

Power Supply: 9~24VDC

Power Consumption: 0.2W

Weight: 550g

Cable Standard: 5 meters (otherlength can be customized)

PTFE reference port

Electrode head: diameter 27, length 115
